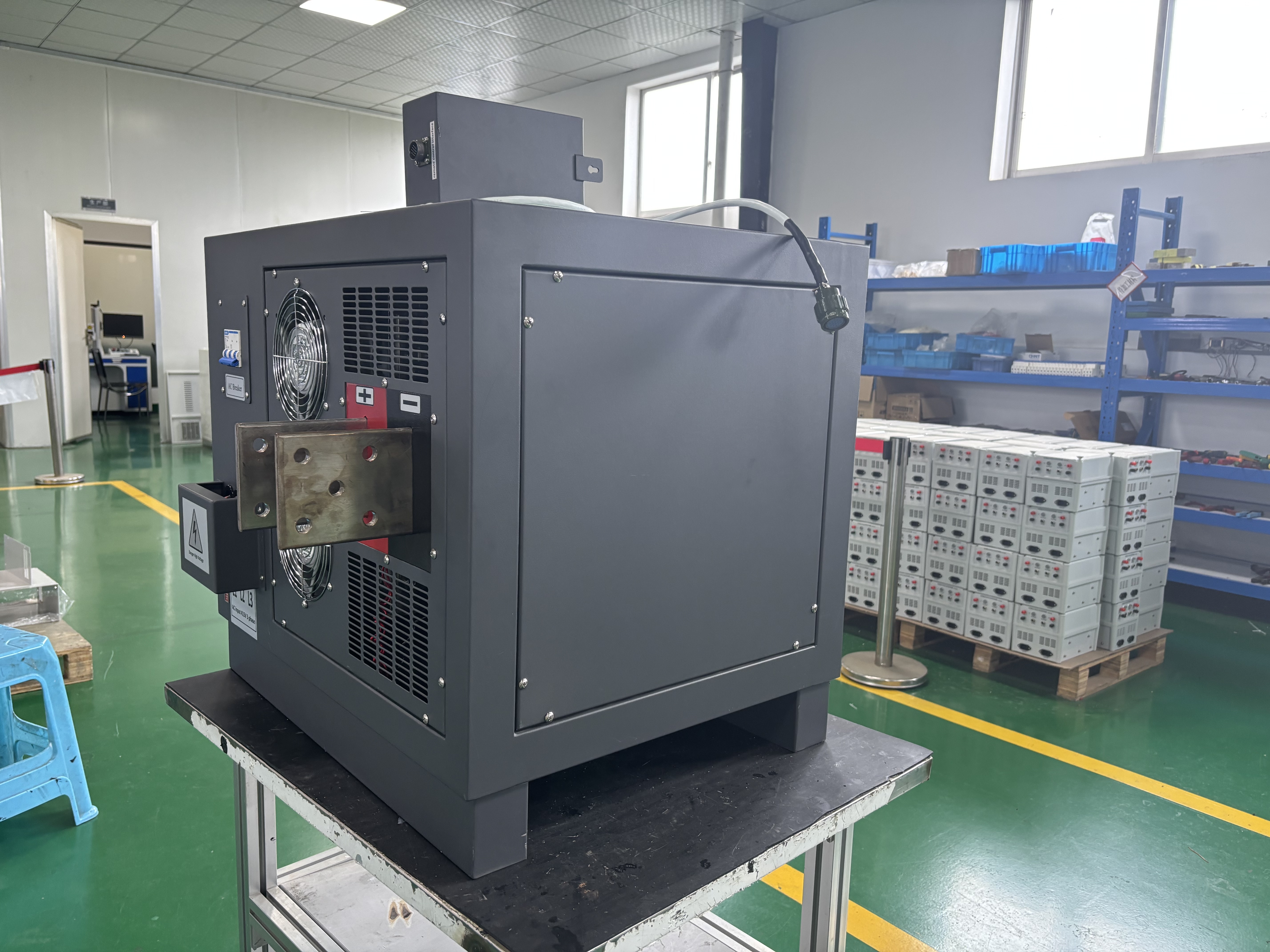

8V 3000A Active Electroplating Rectifier 415V 3 Phase Input High Power DC Supply

Model Number : GKD8-3000CVC

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Place of Origin : China

Packaging Details : strong plywood standard exporting package

MOQ : 1pcs

Delivery Time : 5-30 working days

Price : 1750-2050$/unit

Certification : CE ISO9001

Supply Ability : 200 Set/Sets per Month

Brand Name : Xingtongli

Contact Now

8V 3000A Active Electroplating Rectifier 415V 3 Phase Input High Power DC Supply

This 8V 3000A active rectifier power supply is developed for high-demand electrochemical processes requiring precise and efficient DC power, including electroplating, copper plating, nickel plating, and surface finishing applications. With active rectification technology, it helps improve power quality, reduce energy loss, and maintain stable output under heavy loads. Designed for 415V three-phase AC input, the unit delivers powerful current output with excellent regulation accuracy and continuous-duty reliability. Customized solutions are available for different voltage/current ratings, cooling systems, communication interfaces, and industrial installation requirements.

Technical Specifications
  • Input Power: three-phase 415V AC ±5%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-8V continuously adjustable
    • Current: DC 0-3000A continuously adjustable
    • Power: Max 24KW (8V *3000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 8V 3000A Active Electroplating Rectifier 415V 3 Phase Input High Power DC Supply
  • 8V 3000A Active Electroplating Rectifier 415V 3 Phase Input High Power DC Supply
