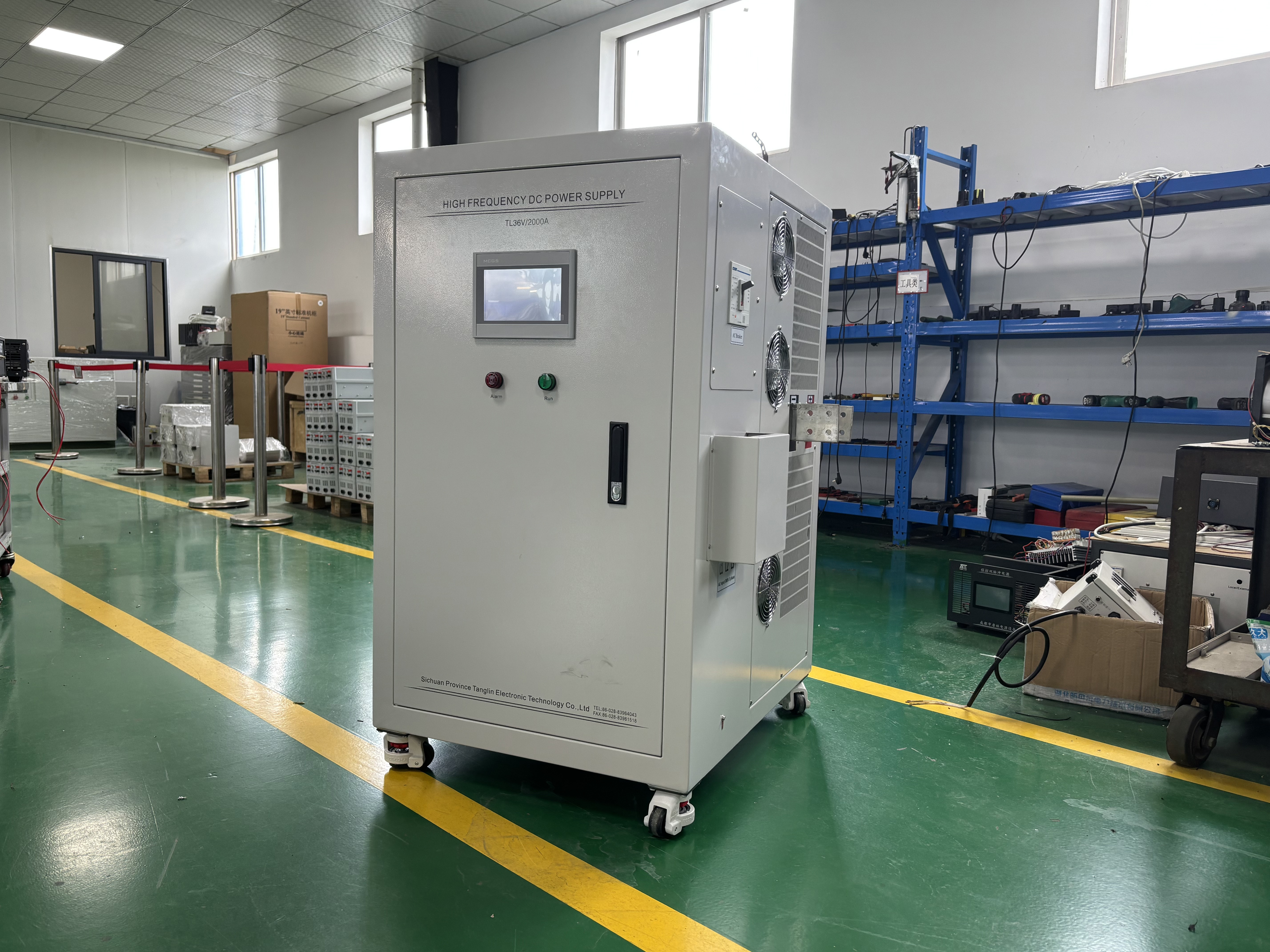

36V 2000A Precision Low Ripple DC Rectifier for Surface Treatment with PLC HMI and RS485

Certification : CE ISO9001

Model Number : GKD36-2000CVC

MOQ : 1pcs

Delivery Time : 5-30 working days

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Price : 10400-12000$/unit

Supply Ability : 200 Set/Sets per Month

Place of Origin : China

Brand Name : Xingtongli

Packaging Details : strong plywood standard exporting package

Contact Now

36V 2000A Precision Low Ripple DC Rectifier for Surface Treatment with PLC HMI and RS485

The 36V 2000A low ripple DC rectifier is engineered for high current surface treatment and electrochemical applications requiring precise and stable power output. Designed with 380V three phase AC input and air cooling, it features PLC and touchscreen HMI control with RS485 communication for easy operation and system integration. With ripple ≤1%, independently adjustable voltage and current, an enhanced 1320mF filtering capacitor, and a load response time of ≤30ms, this rectifier delivers excellent output stability and fast dynamic response for demanding processes such as precision electroplating, anodizing, and metal surface treatment.

Technical Specifications
  • Input Power: three-phase 380V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-36V continuously adjustable
    • Current: DC 0-2000A continuously adjustable
    • Power: Max 72KW (36V *2000A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 36V 2000A Precision Low Ripple DC Rectifier for Surface Treatment with PLC HMI and RS485
  • 36V 2000A Precision Low Ripple DC Rectifier for Surface Treatment with PLC HMI and RS485
