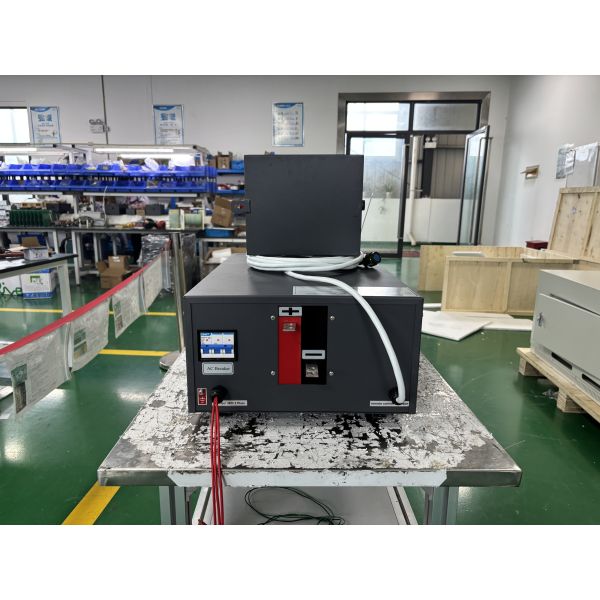

18V 300A Polarity Reversing Rectifier with Ampere Hour Meter 380V 3 Phase Input DC Power Supply for Electroplating

This 18V 300A reversible rectifier is designed for electroplating applications, featuring a built-in ampere hour meter for precise process control. With 380V three-phase input, it ensures stable performance and high efficiency. The reversible polarity function makes it ideal for processes such as plating and surface treatment, providing reliable and consistent output.

• Input Power: three-phase 380V AC ±10%, 50/60Hz
• Output Capability:
  • Voltage: DC 0-18V continuously adjustable
  • Current: DC 0-300A continuously adjustable
  • Power: Max.5.4KW (18V *300A)
• Regulation Accuracy: Voltage ±1%, Current ±1%
• Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
• Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
• Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
• Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
• Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
• Operating Temperature: -10℃ to +50℃
• Protection Rating: IP21 (dust and drip-proof)

• Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
• Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
• Compact Design: Space-saving and lightweight, suitable for workshops or labs.
• Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
• High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

• Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
• Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
• Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
• R & D & Education: Electrochemical experiments in universities and research institutes.
•
•
